Process

Series 200

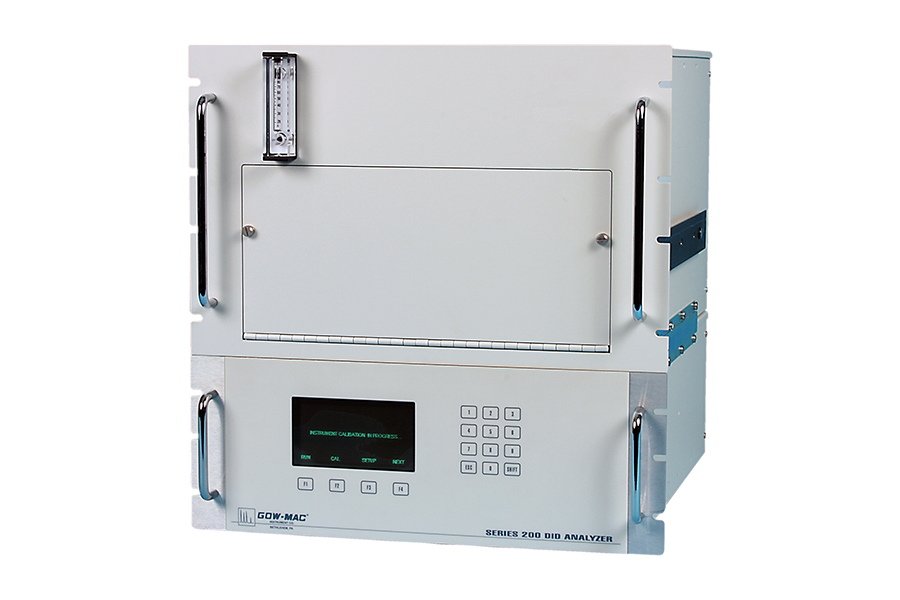

The Series 200 is a 19” Isothermal Rack Mountable Gas Chromatograph with multiple detector options and its own on board data acquisition software installed for on-line use. The Series 200 can have a Discharge Ionization Detector (DID), Thermal Conductivity (TCD), or Flame Ionization Detector (FID) installed. The Series 200 can have Mass Flow Controllers (MFC’s) installed, and can accommodate five packed or micro-packed analytical columns. Custom valve configurations for specific applications come installed with two different modes- manual for method development, and automated for on-line analysis.

Series # 200
Type Gas Chromatograph
Dimensions 19"W x 19.25" H x 21.5"D
Weight 100 lbs.
Power 110V/220V
Detector DID/TCD/FID
Gas He/H2/N2/Ar
Temp Range Ambient to 150°C
Sensitivity 10ppb
Range 10ppb to 100%
Recommended Accessories 75-800 Carrier Gas Purifier
