Leak Detector
Model 21-080

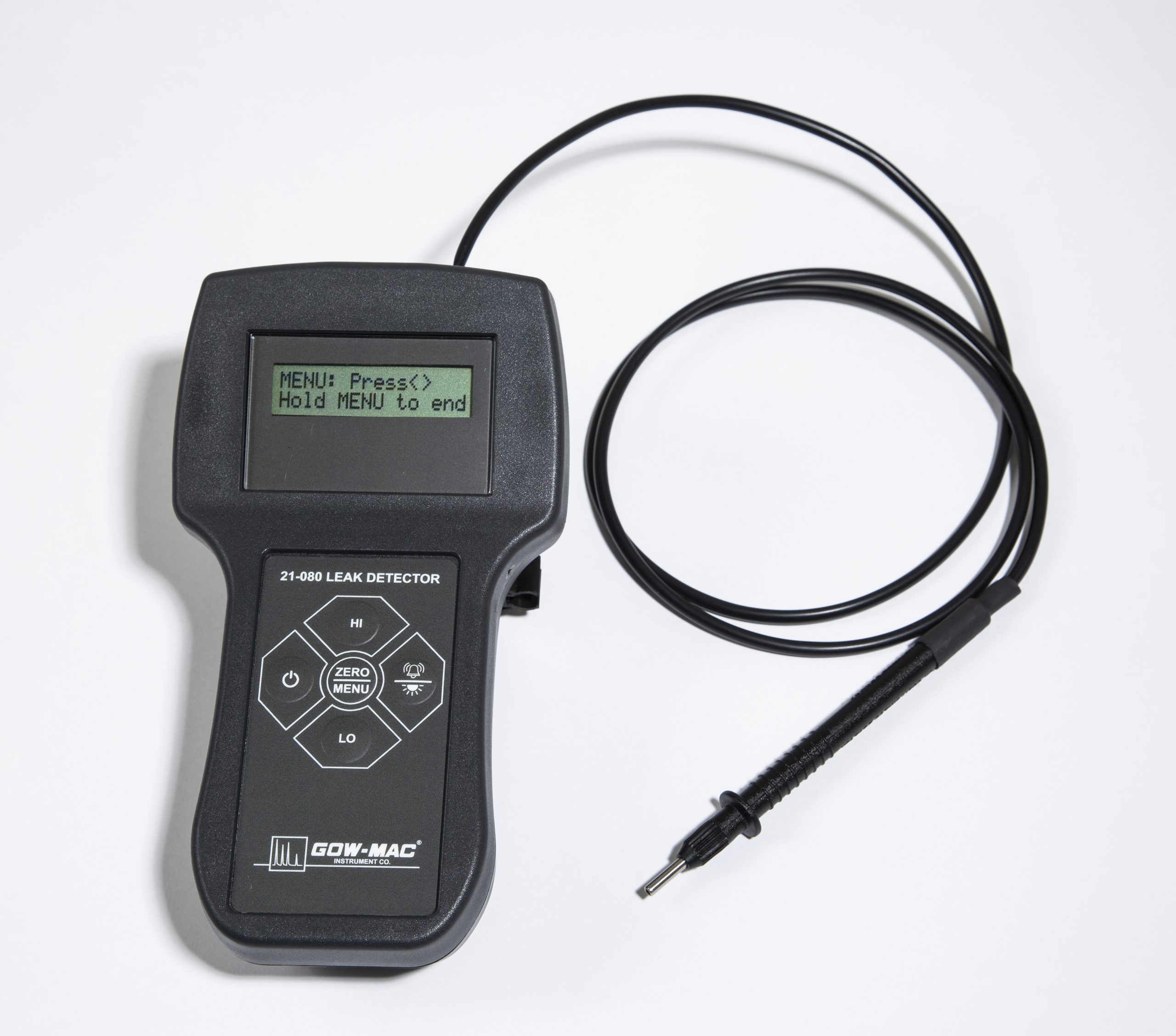

The Model 21-080 Gas Leak Detector is portable, microprocessor controlled, and designed to detect gas leaks which have a different thermal conductivity than air. Designed with a micro thermistor, the 21-080 draws in ambient air as a reference gas for comparison to a gas drawn in through the sample probe. The intensity of the leak is indicated by both an LED display and audible alarm.
| Series # | 21-080 |
|---|---|
| Type | Gas Leak Detector |
| Dimensions | 4.1"W x 3"H x 7.5" L |
| Weight | 1.2 lbs |
| Power | 110V/220V |
| Detector | TCD Thermistor |
| Gas | All |
| Temp Range | Ambient |
| Sensitivity | 1 x 10-5 Helium |
| Range | 1X to 10X |
| Response Time | 3 seconds |
