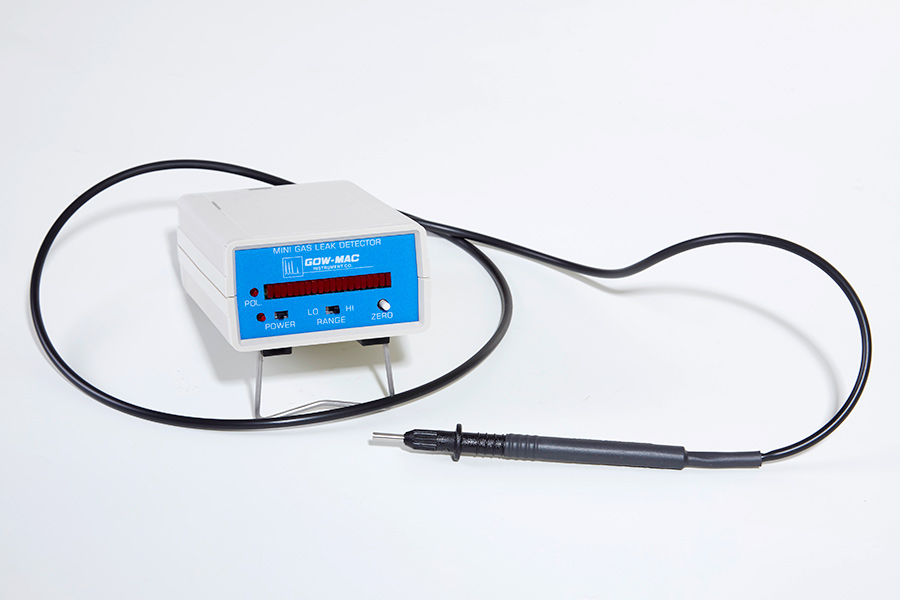

Leak Detector

Model 21-070

The Model 21-070 Gas Leak Detector is portable, microprocessor controlled, and designed to detect gas leaks which have a different thermal conductivity than air. Designed with a micro thermistor, the 21-070 draws in ambient air as a reference gas for comparison to a gas drawn in through the sample probe. The intensity of the leak is indicated by both an LED display and audible alarm.

Series # 21-070
Type Gas Leak Detector
Dimensions 5.25"W x 3.25"H x 1.8" D
Weight 1.0 lbs
Power 110V/220V
Detector TCD Thermistor
Gas All
Temp Range Ambient
Sensitivity 1 x 10-5 Helium
Range 1X to 100X
Recommended Accessories 59-050 Carrying Case

Model 21-070
